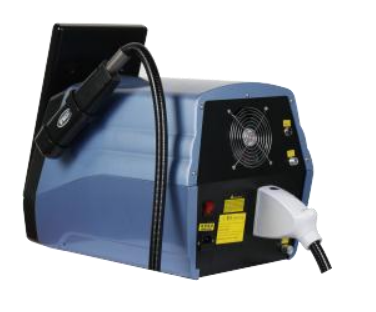

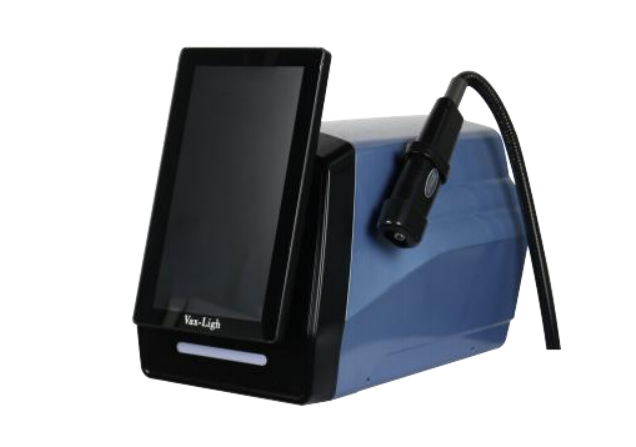

Vax-Ligh Professional ND-YAG Laser Pigment Therapy System

Vax-Ligh Professional ND-YAG Laser Pigment Therapy System is a medical-grade dual-wavelength laser platform designed for comprehensive aesthetic and dermatological treatments in professional clinic settings. This advanced system combines proven Q-switched laser technology with innovative gemstone crystal design to deliver exceptional clinical outcomes across diverse pigmentation disorders and cosmetic applications.

Advanced Photo-Induced Explosion Technology

The Vax-Ligh system operates on the principle of photo-induced explosion, utilizing high-energy laser beams that reach lesion pigment bases in extremely short timeframes (pulse width approximately 10-20 nanoseconds). This ultra-rapid energy delivery causes corresponding color pigment clusters to absorb light energy and rapidly expand before exploding instantly. Surface-level pigment groups break down and metabolize directly through the epidermis, while deeper tissue pigments fragment into microscopic particles that macrophages naturally engulf and eliminate through the body’s lymphatic circulation system. Critically, surrounding normal skin tissue does not absorb 1064nm or 532nm wavelengths, ensuring selective targeting without collateral damage.​

Dual-Wavelength Versatility

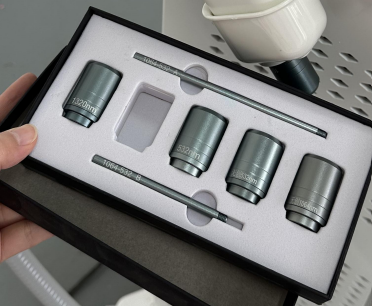

Vax-Ligh features two interchangeable treatment heads optimized for specific pigmentation types:​

1064nm Wavelength Head (Black Base Removal):

• Eliminates blue, black, and cyan pigmentation

• Primary application for professional and amateur tattoo removal

• Treats deep-dermal pigmentation disorders including Ota nevus, Ito hemorrhoids, Mongolian spots, and blue nevi

• Effective for dark eyebrow tattoos, eyeliner removal, and lip line treatment

• Suitable for traumatic pigmentation removal

532nm Wavelength Head (Red Base Removal):

• Targets red, brown, coffee, and light-colored pigmentation

• Treats seborrheic keratosis, junctional nevi, melanosis, and post-inflammatory pigmentation

• Effective for partial melasma treatment

• Removes light-color tattoos and pigmented lesions

• Caution: May produce “purpura” (subcutaneous bruising) due to hemoglobin absorption

Black Doll Treatment Head:

• Specialized head for comprehensive skin rejuvenation

• Whitening and skin brightening treatments (works in conjunction with carbon powder application)

• Removes blackheads and reduces pore size through superficial exfoliation

• Stimulates collagen remodeling for enhanced skin quality​

Clinical Applications & Treatment Spectrum

Endogenous Pigmentary Skin Lesions (Natural Birthmarks & Pigmentation):

• Ota nevus and Ito hemorrhoids – Requires 3-5 treatment sessions

• Mongolian spots and brown/blue nevi on zygomatic area – Typically 1-2 sessions

• Coffee spots and melanosis – Multiple courses of repeated treatment recommended

• Post-inflammatory pigmentation and partial melasma – Multiple treatment courses

• Seborrheic keratosis and blue nevi – Challenging cases requiring professional assessment​

Exogenous Pigmented Skin Problems (Tattoo Removal):

• Professional tattoos (black, blue, multicolor) – 3-5 sessions at 30-60 day intervals

• Eyebrow tattoos (plant pigment, lead pigment, iron ion pigment, changing color materials) – 1-5 sessions depending on pigment type

• Eyeliner/eye-line tattoos – 2-3 sessions with specialized eye protection protocols

• Lip line and full lip tattoos – 2-3 sessions for complete removal

• Traumatic tattoos – Variable sessions based on pigment depth and composition

• Cover-up tattoo removal – 2-3 preliminary treatments before optimal results​

Skin Rejuvenation (Black Doll Protocol):

• Accelerated 3-10 treatment course (fastest once weekly, typically 2-4 weeks intervals)

• Comprehensive skin brightening and whitening

• Melanin reduction and dark/yellow skin tone correction

• Pore size reduction and blackhead elimination

• Collagen stimulation and skin quality enhancement​

Technical Specifications

Laser Parameters:

• Dual wavelength: 1064nm and 532nm with switchable treatment heads

• Pulse width: Approximately 10-20 nanoseconds (Q-switched mode)

• Single pulse energy: Maximum 200mJ (millijoules)

• Multi-pulse energy: Maximum 1200mJ

• Frequency: 1-10Hz adjustable (adjustable based on application)

• Energy density: 300-3000J/cm² (fully adjustable)

• Operating voltage: 220V or 110V selectable​

Physical Specifications:

• Display: 10.6-inch LCD touchscreen interface

• Languages: Six customizable language options

• Dimensions: 50×35×58cm

• Package size: 55×40×63cm

• Weight: Professional-grade portable unit

• Transportation: Included flight case for secure clinic or clinic-to-clinic transport​

Advanced Features:

• Patented anti-seismic ceramic diffuse reflection gun body for superior stability

• Premium-grade dedicated YAG crystal for optimal beam quality

• High-quality pulse laser lamps ensure consistent energy delivery

• High-power water pumps for continuous, reliable operation

• Complete laser safety system with protective eyewear for operator and patient

• Emergency stop functionality and multiple safety interlocks​

Operational Excellence & Patient Safety

Treatment Customization:
Vax-Ligh enables precise treatment customization through adjustable energy levels (300-3000J/cm²), variable pulse frequencies (1-10Hz), and multiple treatment head options. Operators can tailor treatment intensity from subtle (for sensitive patients) to aggressive (for deep or resistant pigmentation), ensuring optimal balance between efficacy and patient comfort.​

Treatment Protocol Overview:

• Standard treatment intervals: 30-60 days between sessions for tattoo removal; 15-30 days for spot removal

• Number of sessions: Ranges from 1-7+ depending on pigment type, depth, and individual healing response

• Recovery time: 7-14 days for scab formation and natural shedding; complete pigment regression typically requires 1-3 months postoperatively

• Safety measures: Mandatory protective eyewear, emergency protocols, and comprehensive pre-operative patient assessment to exclude contraindicated patients​

Black Doll Skin Rejuvenation Protocol:
The specialized Black Doll treatment combines nano-toner application with laser energy to deliver superficial exfoliation and skin rejuvenation. This non-invasive procedure is described as producing “sparks” and creating an exfoliated epidermis thin enough to cause no cutaneous wounds—purely superficial mechanical exfoliation resulting in dramatically brightened, clearer skin tone.​

Indications & Contraindications

Ideal Candidates:

• Patients seeking tattoo removal or eyeliner/eyebrow correction

• Individuals with pigmentation disorders (birthmarks, age spots, freckles, melasma)

• Patients pursuing skin rejuvenation and brightening treatments

• Those desiring Ota nevus or pigmented lesion removal

Contraindicated Patients:

• Pregnant women

• Individuals with cardiac conditions or uncontrolled hypertension

• Patients with light allergies or photosensitivity

• Those with open wounds or compromised skin integrity

• Scar-prone individuals (keloid formers) – generally not recommended

• Patients with difficult wound healing

• Those with active skin infections or severely compromised immune function​

Postoperative Care Protocols

Following treatment, patients require comprehensive aftercare:

• Anti-inflammatory ointment application (aloe vera gel, repair cream) for 2-3 days

• Complete sun avoidance or SPF 30-50+ daily protection

• Restricted water contact for 2-3 days post-treatment

• Dietary modifications: No spicy foods, ginger, or deep-colored beverages for minimum 1 week

• No makeup or irritating skincare products during healing period

• Scab protection—allow natural shedding; do not forcibly remove

• Return to normal cleansing 1-2 months post-treatment before any pigment color correction procedures​

Vax-Ligh Professional ND-YAG Laser System delivers clinical-grade tattoo removal and pigmentation correction capabilities combined with skin rejuvenation features, making it an ideal investment for aesthetic clinics and dermatology practices seeking comprehensive, results-driven treatment options.
